ADLER ALUMINIUM ACC
ADLER Glaserei is one of the biggest and most established companies in Berlin
Germany dealing with various products such as, Spider Fittings, Glass Door Handles,
Shower Hinges & Glass Clip, Shower Door Knobs, and Translucent Sealing Strips,
Surface Protection Tape, Structural & Glazing Tapes and various door & window
accessories. The materials of Adler have 5 years guarantee.
This is to conform that Adler Products were manufactured in Germany, Singapore and
China under the license of ADLER Glaserei GmbH with full supervision and these
Adler materials are source out in East Europe, Singapore and China. The entire Adler
products aforementioned are complying with European Standard EN-1154.
Our Products
Adjustable Fastening Pawl C-AD 116
Functions
Fastening element to be applied directly onto the rods in the range. It permits adjusting the force of the pull by simply turning the eccentric part
Technical features Simple and quick to apply by simply making a hole diam. 8mm on the rod. Permits making one or more supplementary fastenings on any frame. Offers the possibility of adjusting the force of the closing pull
Materials
Zamak base and pawl
Stainless steel screws
ALUMINIUM SWING DOOR HANDLE
Double bend Auminium swing door handle to be applied in Aluminium doors, It provide an ideal grip for heavy doors destined especially for public and commercial use.
Center To Center (CC) - 300mm
Handle Diameter (HD) - 32mm
Standard Finishes: Powder Coated White Powder Coated Black Mill Finish Painted Colors
Center To Center (CC) - 300mm
Handle Diameter (HD) - 32mm
Standard Finishes:
Powder Coated White Powder Coated Black Mill Finish

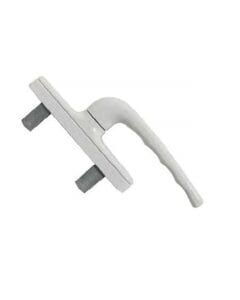

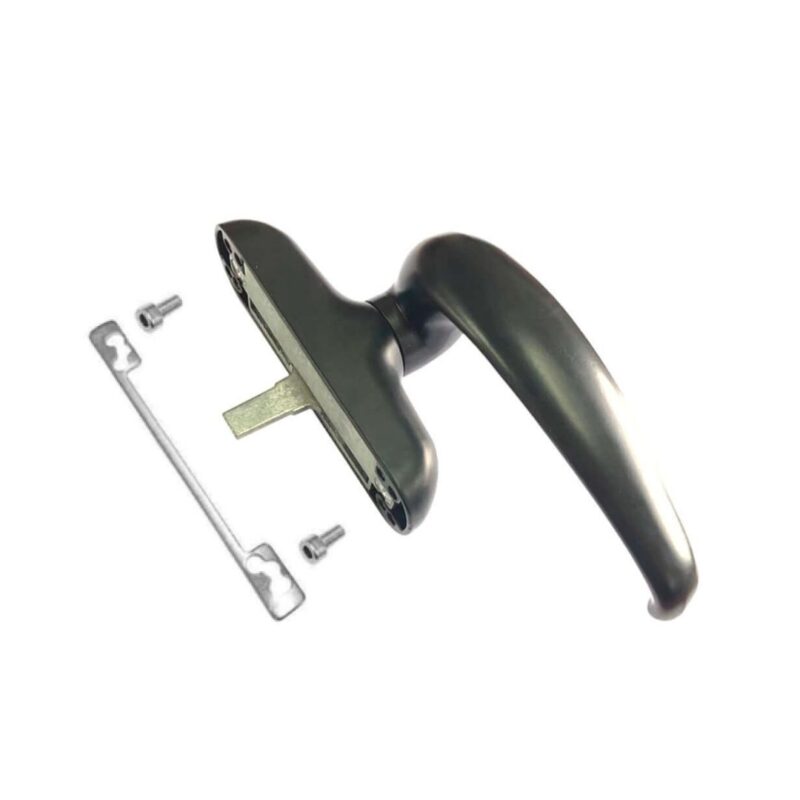

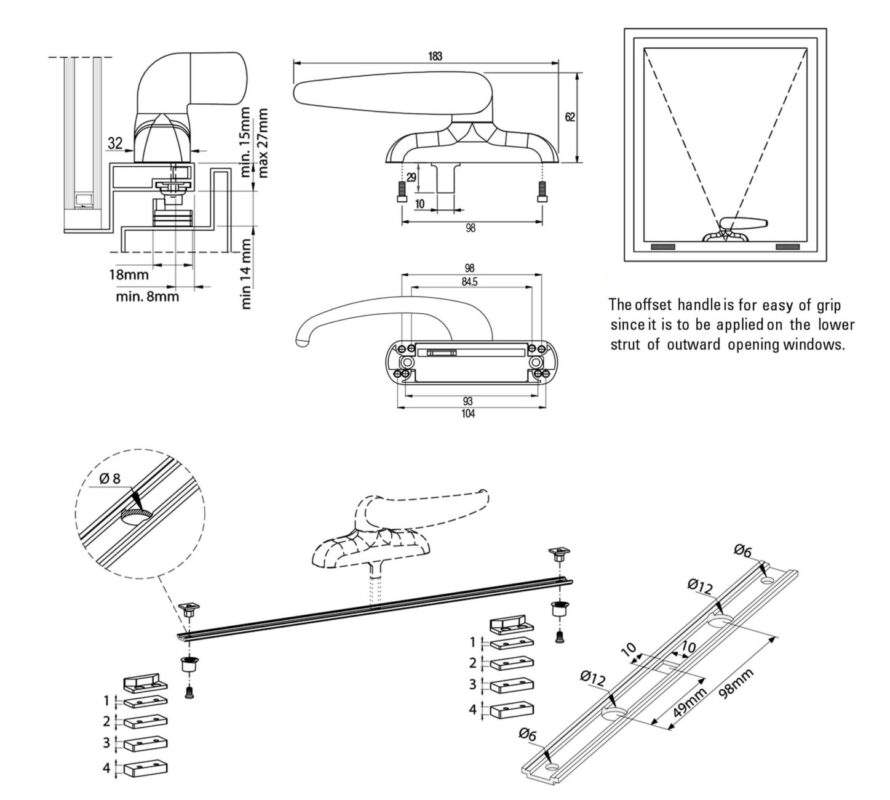

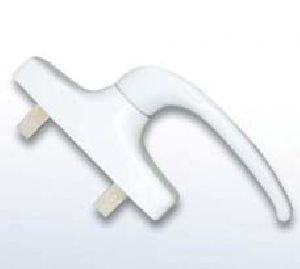

cremone bolt handle C-AD 108
Aluminum die-cast cremone bolt, the zamak gears slide inside an acetyl resin guide, which also has slots for securing in the opening or closing positions. The cremone bolt is universal, can be reversed and has tow-possible center-to-center distances for securing to the profile. Comes with complete kit for the closing one winged window, consisting of tow- rod connection blocks for cremone bolt, tow- rod ends and tow-check plates, made from zamak. Finishing: painted in RAL colors
CURTAIN WALL LOCKING ACCESSORIES C-AD 115
Functions
Fastening element to be applied directly onto the rods in the range. It permits adjusting the force of the pull by simply turning the eccentric part
Technical features Simple and quick to apply by simply making a hole diam. 8mm on the rod. Permits making one or more supplementary fastenings on any frame. Offers the possibility of adjusting the force of the closing pull
Materials
Zamak base and pawl Stainless steel screws

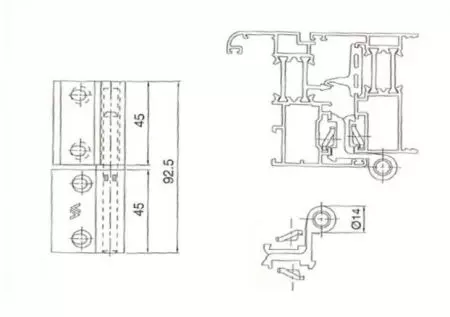

HEAVY DUTY HINGES C-AD 107
The heavy duty hinge is the most efficacious solution for the realisation of doors/frames of considerable dimension and weight. It can be entirely mounted on the pre-assembles frame, thanks to the fast adjustments in the three directions, made without the disassembling of the carters and the removing of the window leaf. This operation can be effected also by one person and is facilitated by the presence of immediately visible incisions. Hinges are available for different interaxes: 60-79
The base body of the hinge is made of extruded aluminium, cover-plate in die-casting aluminium, pivots in stainless steel, self-placing bushes and screws in galvanised steel, ferrules and plugs in nylon, fixing counterplates in extruded aluminium and the spring in galvanised steel.
Load capacity of 2 wings-150kg.
Finishing: painted in RAL colors
