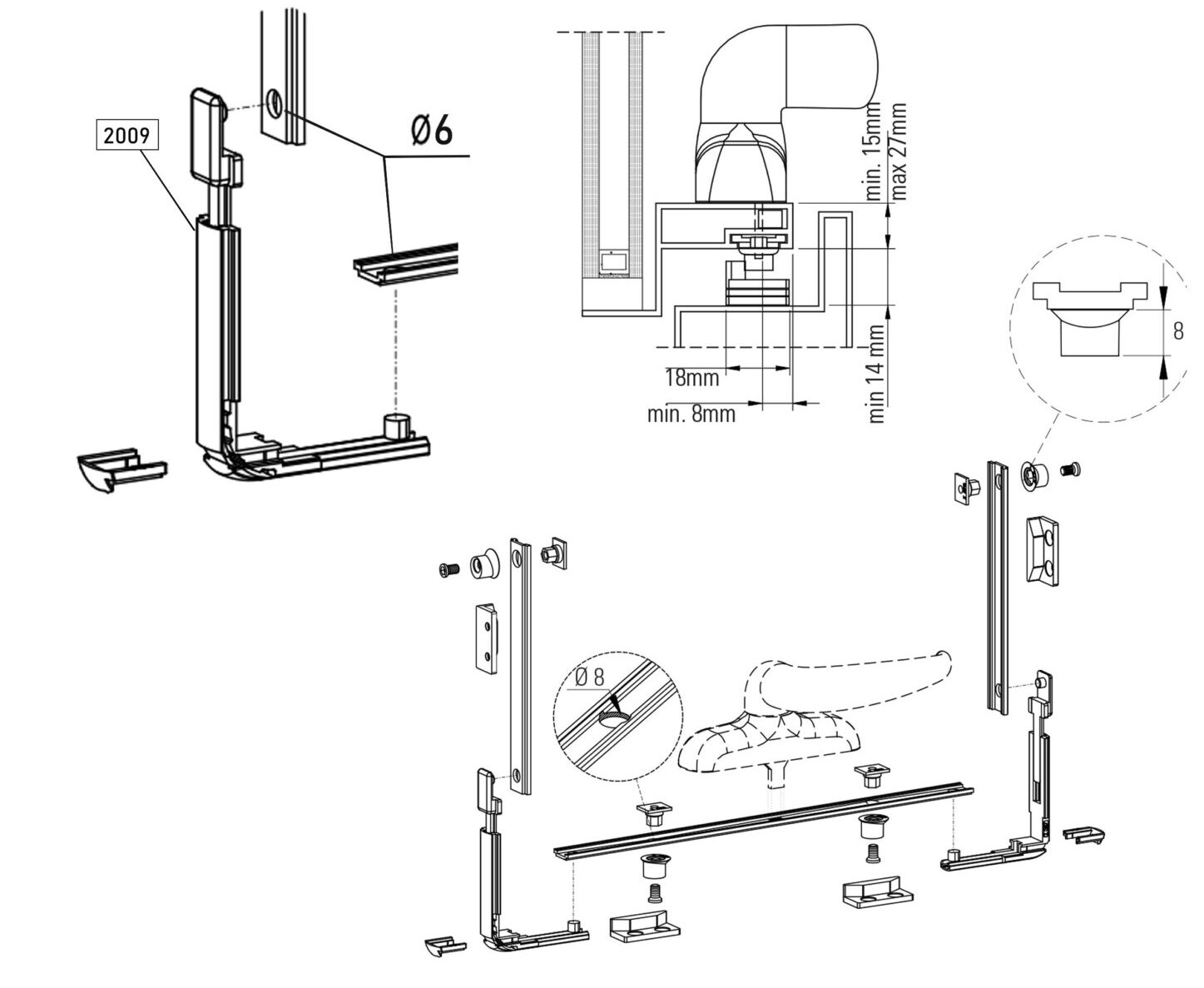

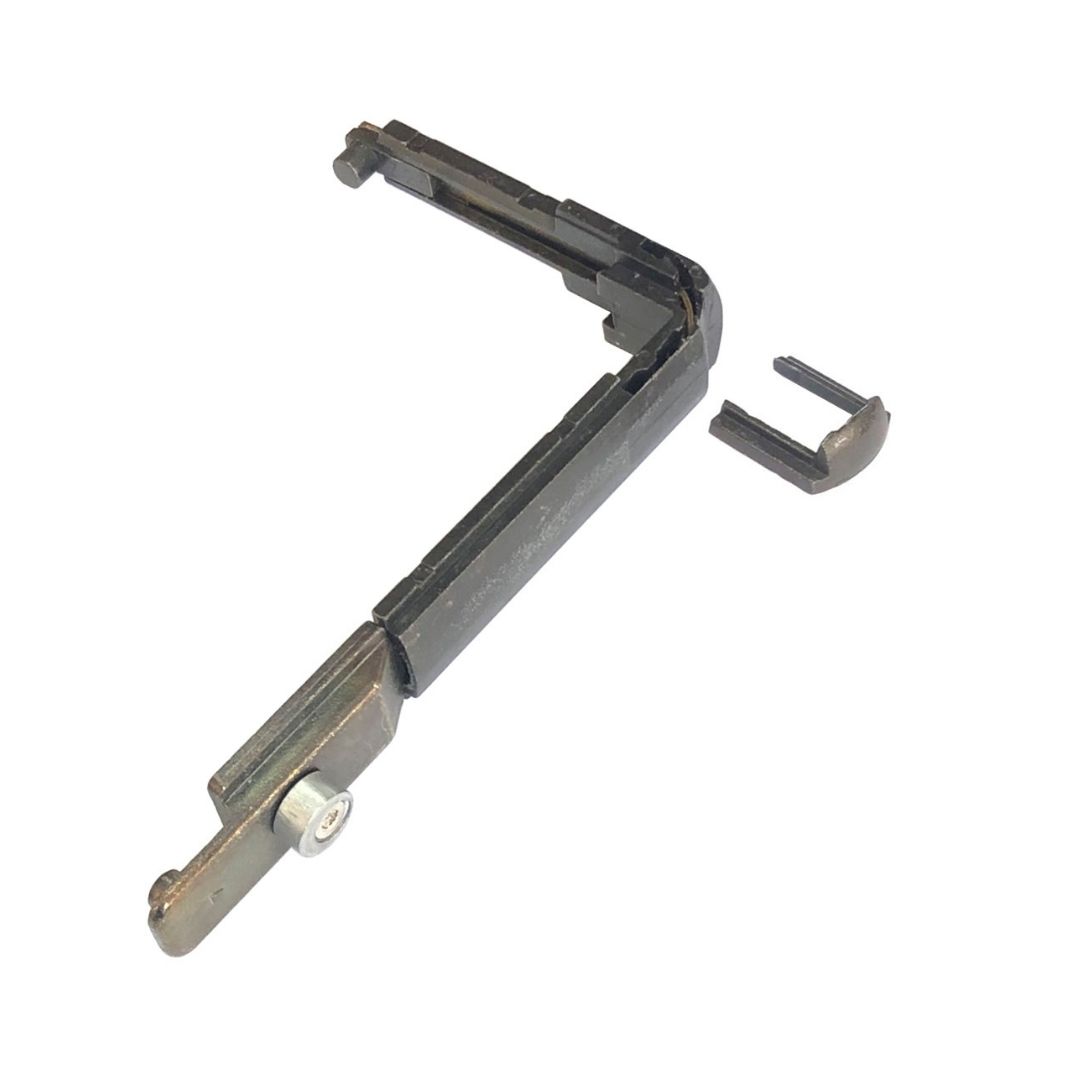

ADDITIONAL VERTICAL LOCK C-AD 114
It allows the application of two additional vertical closing points, one on the cremone bolt side and the other one on the hinge side. Materials made from black galvanized Zamak.
コ
Reviews (0)
Related products
Adjustable Fastening Pawl C-AD 116
Functions
Fastening element to be applied directly onto the rods in the range. It permits adjusting the force of the pull by simply turning the eccentric part
Technical features Simple and quick to apply by simply making a hole diam. 8mm on the rod. Permits making one or more supplementary fastenings on any frame. Offers the possibility of adjusting the force of the closing pull
Materials
Zamak base and pawl
Stainless steel screws
HEAVY DUTY HINGES C-AD 107
The heavy duty hinge is the most efficacious solution for the realisation of doors/frames of considerable dimension and weight. It can be entirely mounted on the pre-assembles frame, thanks to the fast adjustments in the three directions, made without the disassembling of the carters and the removing of the window leaf. This operation can be effected also by one person and is facilitated by the presence of immediately visible incisions. Hinges are available for different interaxes: 60-79
The base body of the hinge is made of extruded aluminium, cover-plate in die-casting aluminium, pivots in stainless steel, self-placing bushes and screws in galvanised steel, ferrules and plugs in nylon, fixing counterplates in extruded aluminium and the spring in galvanised steel.
Load capacity of 2 wings-150kg.
Finishing: painted in RAL colors
NYLON (FINGER CATCH) C-AD 121
Nylon catch has soft and rounded shapes and easy ringing nylon grip. Equipped with of an exclusive fixing system that helps the correct placing of the body and the counter plate. Perfect use on complanate and surmount (+7mm) systems with the 2 counter plates. Additional thicknesses of 1,2,3 mm compatible with both counter plates (usable for surmount systems till 13mm). Nylon body. counter plates and thicknesses; tempered steel helical spring; black galvanized steel fixing screws 03,5 TSPC CR.
Nylon ratchet "RING" is universal for the PVC, WOOD, ALUMINIUM AND WOOD-ALUMINIUM profiles. It is also adaptable for the surmount systems (15-28mm).
Two Directional Lever Bolt C-AD 119 D
Applications
Two directional lever bolt extremely strong suitable
also on door of new design.
Characteristics
Useful travel 18mm With lever operation it is possible to transmit a force of up 180 kg to the rod.
It is flush-mounted and can accommodate indistinctly
sliding rods dia-meter 6mm or 8mm because it is already fitted with a dual threading diameter.
Parts supplied
2 black stainless steel 7P 1/2" flat head c/sunk screws.
Materials
Die-cast zamak body and lever hardened steel springs.
Finishing: Painted in RAL colors
Two wings (Flash base hinge) C-AD 103
Tow-wing hinge made from aluminum, extrusion to fit in euro grove profiles the coun-terplates, screws and pin are stainless steel while the bush is made from self-lubricating nylon it is ready-assembled right or lift and so easy to fit to the wing Capacity of 2 hinges, 80kg
Finishing: painted in RAL colors
