ADLER mortise lock
ADLER mortise lock
Back to products

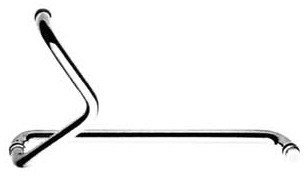

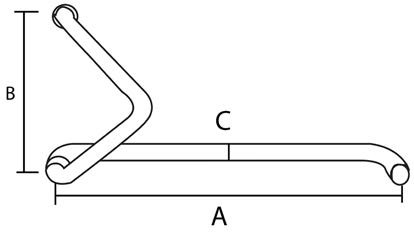

GLASS DOOR PULL HANDLE (AD-601)
GLASS DOOR PULL HANDLE (AD-601)

ADLER mortise lock

Manual – locking system

With its innovative modular design, locks allows for many applications on narrow stile (aluminium and PVC) door systems. Due to their roller latch-ball +/- 2mm adjustable, the locks are used for swing doors, Moreover the burglary-inhibiting locks are suitable for use on fire protection and escape doors.

Add to wishlist
SKU: AD-18531 Categories: ,
Description

Features and benefits provided by ADLER lock :

•15mm deadbolt single throw (manual activation)
•G.I Lock case thickness of only 15.5 mm
•Roller latch-ball made of brass nickel-plated
•Deadbolt made of brass nickel-plated
•Squared for-end: made from solid stainless steel 304g satin finish

Technical data :

Centers 115mm (euro-profile cylinder)
Backset 30mm
Deadbolt throw single throw15mm (manual activation)
Roller-latch-ball 10mmx32mm
Squared forend 240mmx23mmx3mm stainless steel
