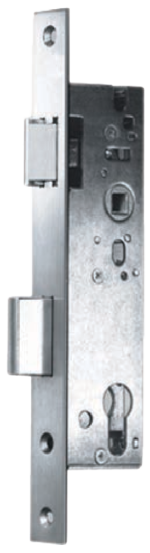

ADLER mortise lock

Manually-locking system with panic function :

With its innovative modular design, locks allows for many applications on narrow stile (aluminium and PVC) door systems. Due to their reversible latch-bolt, the locks are non-handed (DIN L.H / DIN R.H usable). Moreover, the burglary-inhibiting locks are suitable for use on fire pro-tection and escape doors.

Add to wishlist
SKU: AD-18531-2 Categories: ,
Description

Features and benefits provided by ADLER lock :

  • Non-handedlockwith DIN L.H/R.H reversible latch



  • 25.6mmdeadboltthrow (manual activation)



  • G.ILockcase thickness of only 15.5 mm



  • Followerpucketcast stainless steel



  • Latch&deadbolt made of brass nickel-plated



  • Approvedinaccordance with EN 179 and EN 1125

Technical data :

Centers 92mm (euro-profile cylinder)
Backset 30mm
Follower 8mm
Deadbolt throw Double throw 25.6mm (2 turn of the key)
Latch-bolt 9.2mmx32mm reversible latch
Squared forend 240mmx23mmx3mm stainless steel



Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “ADLER mortise lock”

Your email address will not be published. Required fields are marked *

Related products

ADLER mortise lock

,

Manual - locking system

With its innovative modular design, locks allows for many applications on narrow stile (aluminium and PVC) door systems. Due to their reversible latch-bolt, the locks are non-handed (DIN L.H / DIN R.H usable). Moreover, the burglary-inhibiting locks are suitable for use on fire pro-tection and escape doors
Add to wishlist
Read more
Quick view

Fin Spider Fitting F2002 CV 90o

,
Tow arms spider fitting used to attach tow glass panels to wall or structural glass fin Comes with routels and stainless steel plate and two stainless steel threaded studs and two matching cap nuts with washers. Material : Stainless steel grade available 304,316 Finishing available : *satin stainless steel –sss *polished stainless steel-pss
Add to wishlist
Read more
Quick view

Fin Spider Fitting F2003 CV

,
Three arms spider fitting used to attach three inline glass panels to structural center fin Comes with routels and two stainless steel threaded studs and two matching cap nuts with washers. Material: Stainless steel grade available 304,316 Finishing available : *satin stainless steel –sss *polished stainless steel-pss
Add to wishlist
Read more
Quick view

Fin Spider Fitting F2004 CV

,
Four arms spider fitting used to attach four inline glass panels to structural center fin Comes with routels and two stainless steel threaded studs and two matching cap nuts with washers. Material:  Stainless steel grade available 304,316 Finishing available : *satin stainless steel –sss *polished stainless steel-pss
Add to wishlist
Read more
Quick view

GLASS DOOR PULL HANDLE (AD-601)

,
Straight type door pull design was the first member of the door pull handle family , pull tube was required to be ergonomic ally designed to ensure hands could grip safely and purposefully
Add to wishlist
Read more
Quick view

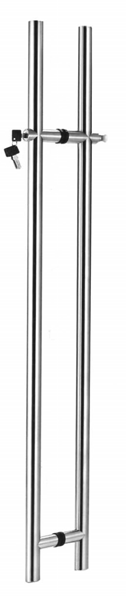

GLASS DOOR PULL HANDLE (AD-6015)

,
Adler Pull Handle/Towel Bar Combinations With Metal Washers are provided with all the hardware required for installation. Each set consists of a pull handle/towel bar set, along with decorative metal back-up washers and plastic washers to protect against glass-to-metal contact.
Add to wishlist
Read more
Quick view

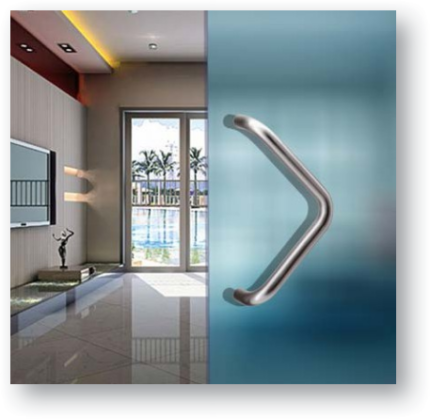

GLASS DOOR PULL HANDLE (AD-604)

,
