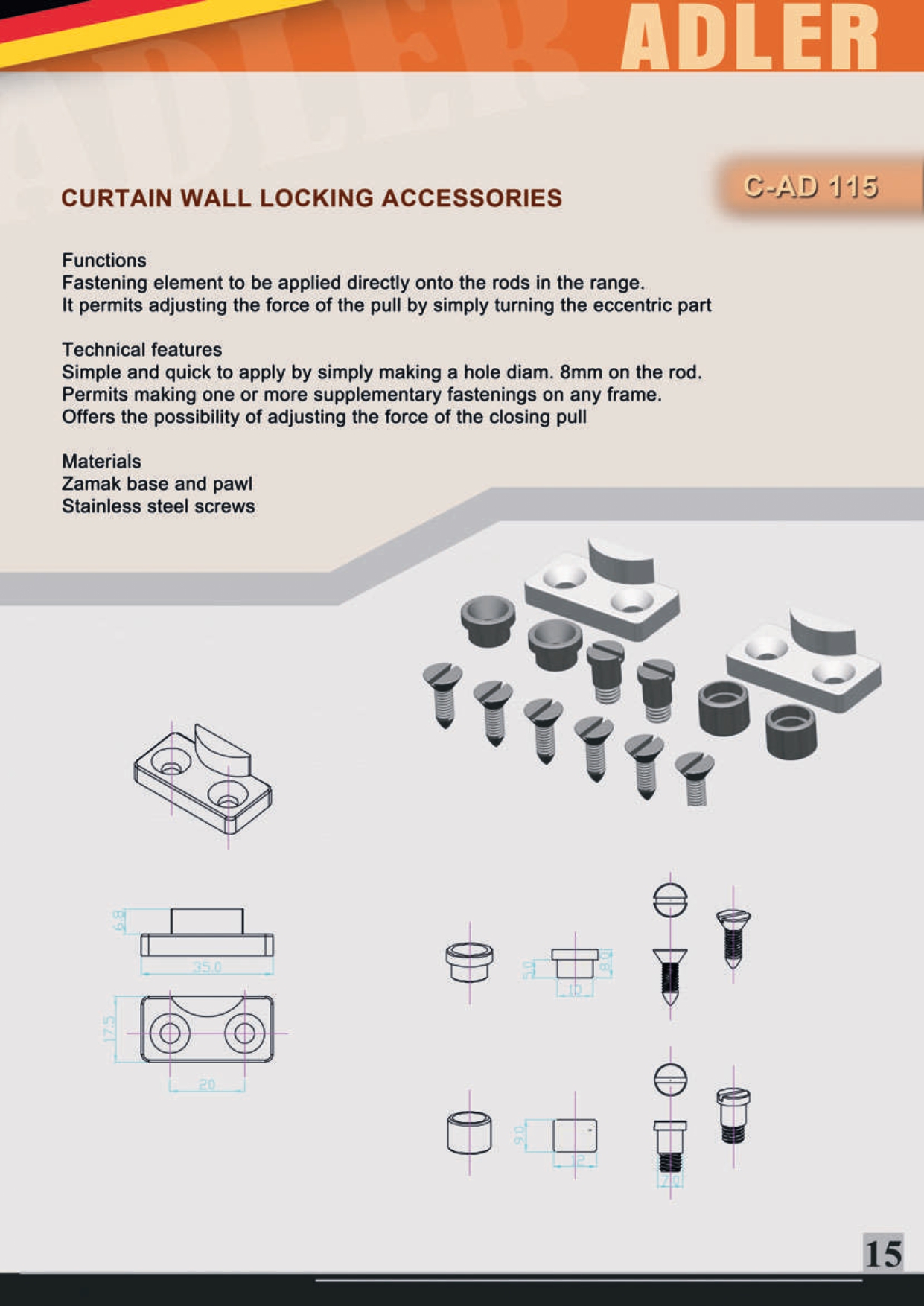

CURTAIN WALL LOCKING ACCESSORIES C-AD 115
Functions
Fastening element to be applied directly onto the rods in the range. It permits adjusting the force of the pull by simply turning the eccentric part
Technical features Simple and quick to apply by simply making a hole diam. 8mm on the rod. Permits making one or more supplementary fastenings on any frame. Offers the possibility of adjusting the force of the closing pull
Materials
Zamak base and pawl Stainless steel screws
