curve curtain wall handle C-AD 112

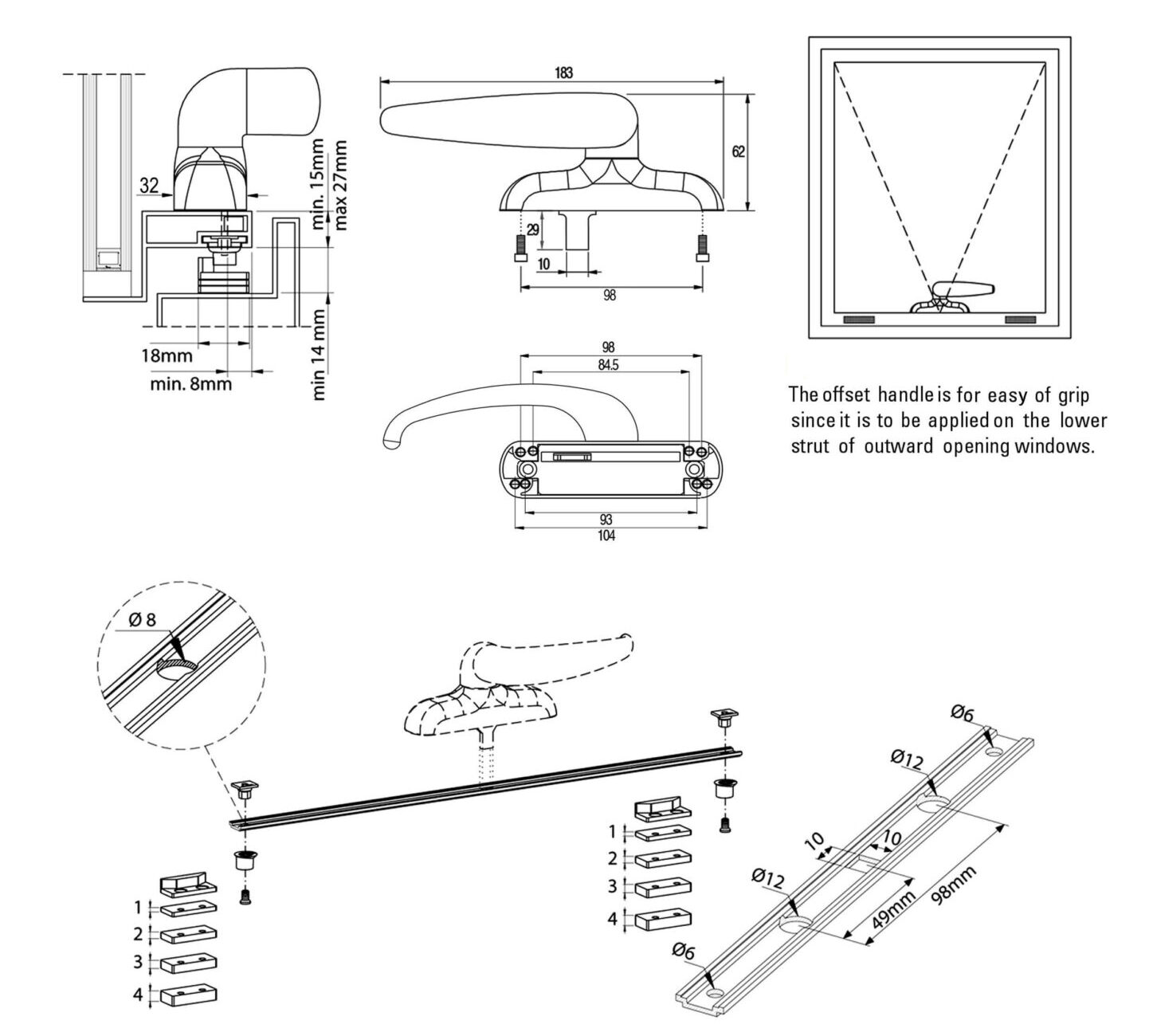

The employ of Die-cast aluminum handle and zamak case. its differs from the basic casement bolt because, apart from having only one transmission fin, it has an offset handle for ease of grip since it is to be applied on the lower strut of outward opining windows.
Finishing: painted in RAL colors
Reviews (0)
Related products
Adjustable Fastening Pawl C-AD 116
Functions
Fastening element to be applied directly onto the rods in the range. It permits adjusting the force of the pull by simply turning the eccentric part
Technical features Simple and quick to apply by simply making a hole diam. 8mm on the rod. Permits making one or more supplementary fastenings on any frame. Offers the possibility of adjusting the force of the closing pull
Materials
Zamak base and pawl
Stainless steel screws
ALUMINIUM SWING DOOR HANDLE
Double bend Auminium swing door handle to be applied in Aluminium doors, It provide an ideal grip for heavy doors destined especially for public and commercial use.
Center To Center (CC) - 300mm
Handle Diameter (HD) - 32mm
Standard Finishes: Powder Coated White Powder Coated Black Mill Finish Painted Colors
Center To Center (CC) - 300mm
Handle Diameter (HD) - 32mm
Standard Finishes:
Powder Coated White Powder Coated Black Mill Finish
cremone bolt handle C-AD 108
Aluminum die-cast cremone bolt, the zamak gears slide inside an acetyl resin guide, which also has slots for securing in the opening or closing positions. The cremone bolt is universal, can be reversed and has tow-possible center-to-center distances for securing to the profile. Comes with complete kit for the closing one winged window, consisting of tow- rod connection blocks for cremone bolt, tow- rod ends and tow-check plates, made from zamak. Finishing: painted in RAL colors
LOCKING KIT C-AD 110
Kit for use in conjunction with window Cremone bolts and the kit has all the components needed for the frame fastening device.
This kit converts the window Cremone bolts into a Cremone bolt for inward opening designs. The kit is complete with all the components (2 blocks, 2 end-pieces and 2 keeps) needed for the frame fastening device.
Prodaction tape
APPLICATIONS
Temporary protection of surfaces, during medium and severe mechanical transformations of the following materials: Brushed aluminium, ground or deep drawing stainless steel, matt painted coils and PVC profiles/plates.
Not suggested for Copper, brass and copper containing alloys. Not suitable for protection against corrosion, humidity or chemical solvents.
SUITABLITY
suitable for POWDER COATED ALUMINIUM PROFILES ADLER N-2R exhibits the special "EASY-PEEL" characteristics for the rapid removal of the film from high gloss to semi matt surface, such as glossy painted metals.
The removal Forces is inversely proportional to the speed of removal
OUTLINES
UNIT
Film type
polyethylene (LDPE) UV Treated 80 MIC Black / White, Black / Black
Average Thickness (A.S.T.M) Colour
Two Directional Lever Bolt C-AD 119 D
Applications
Two directional lever bolt extremely strong suitable
also on door of new design.
Characteristics
Useful travel 18mm With lever operation it is possible to transmit a force of up 180 kg to the rod.
It is flush-mounted and can accommodate indistinctly
sliding rods dia-meter 6mm or 8mm because it is already fitted with a dual threading diameter.
Parts supplied
2 black stainless steel 7P 1/2" flat head c/sunk screws.
Materials
Die-cast zamak body and lever hardened steel springs.
Finishing: Painted in RAL colors
