LOCKING KIT C-AD 110
Kit for use in conjunction with window Cremone bolts and the kit has all the components needed for the frame fastening device.

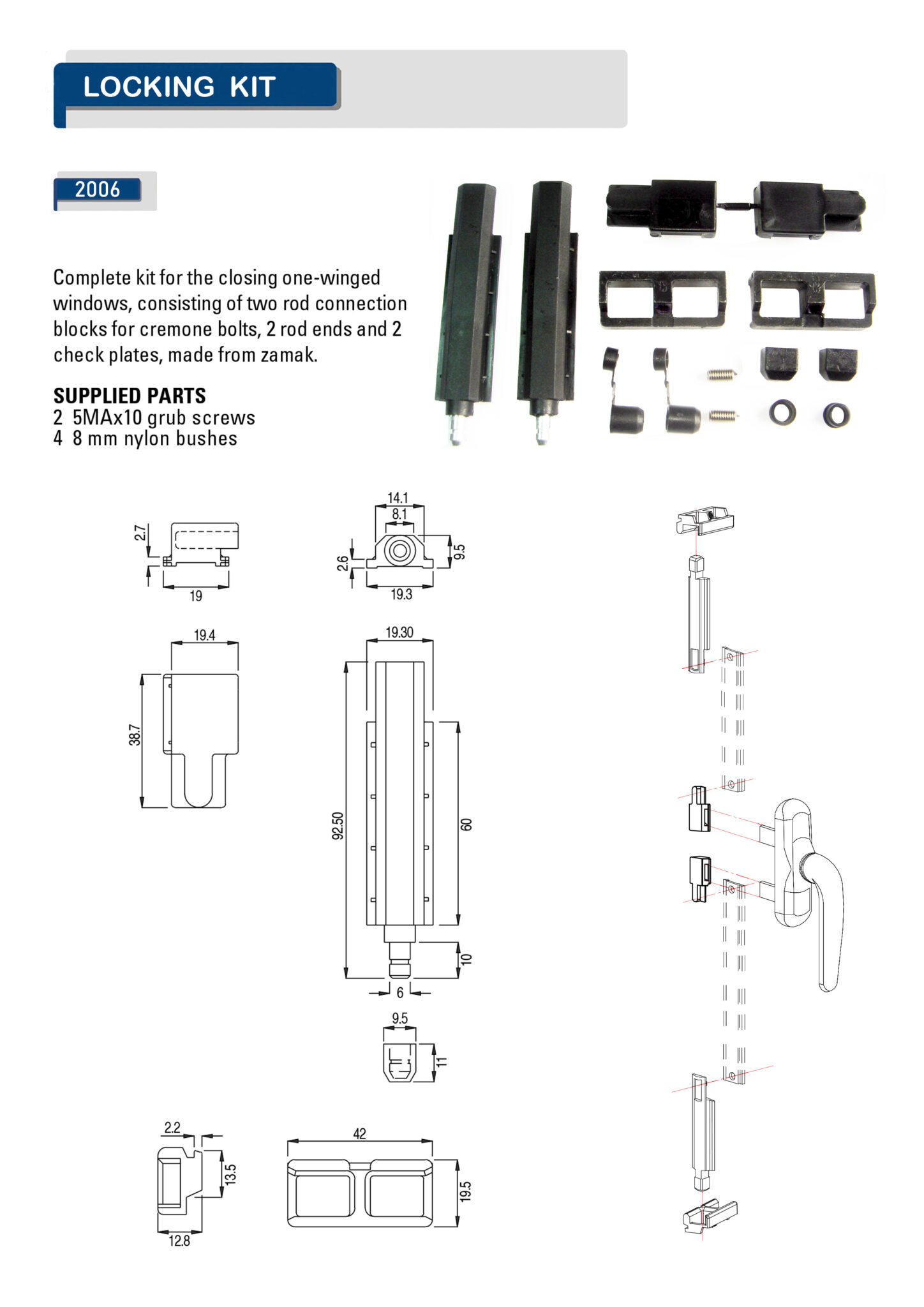

This kit converts the window Cremone bolts into a Cremone bolt for inward opening designs. The kit is complete with all the components (2 blocks, 2 end-pieces and 2 keeps) needed for the frame fastening device.
Reviews (0)
Related products
Adjustable Fastening Pawl C-AD 116
Functions
Fastening element to be applied directly onto the rods in the range. It permits adjusting the force of the pull by simply turning the eccentric part
Technical features Simple and quick to apply by simply making a hole diam. 8mm on the rod. Permits making one or more supplementary fastenings on any frame. Offers the possibility of adjusting the force of the closing pull
Materials
Zamak base and pawl
Stainless steel screws
cremone bolt handle C-AD 108
Aluminum die-cast cremone bolt, the zamak gears slide inside an acetyl resin guide, which also has slots for securing in the opening or closing positions. The cremone bolt is universal, can be reversed and has tow-possible center-to-center distances for securing to the profile. Comes with complete kit for the closing one winged window, consisting of tow- rod connection blocks for cremone bolt, tow- rod ends and tow-check plates, made from zamak. Finishing: painted in RAL colors
CURTAIN WALL LOCKING ACCESSORIES C-AD 115
Functions
Fastening element to be applied directly onto the rods in the range. It permits adjusting the force of the pull by simply turning the eccentric part
Technical features Simple and quick to apply by simply making a hole diam. 8mm on the rod. Permits making one or more supplementary fastenings on any frame. Offers the possibility of adjusting the force of the closing pull
Materials
Zamak base and pawl Stainless steel screws
Hinge door handle C-AD 102
Double Door handle with die-cast aluminium shaft, available with comfort designs.
It has an easy moving cover screws case, planned for the ambidextrous rotation without any modification, Different solutions available for the assembling:
with auto threading screws, with the use of metrical
screws and rivets or with the use of anti housebreaking kits.
The double internal recovery spring assures a perfect horizontal alignment. Die-cast aluminium handle, box, cover box and rotor in zamak.
Zinc-coated steel, derlin anti-friction bushes.
Finishing: painted in RAL colors
Two Directional Lever Bolt C-AD 119 D
Applications
Two directional lever bolt extremely strong suitable
also on door of new design.
Characteristics
Useful travel 18mm With lever operation it is possible to transmit a force of up 180 kg to the rod.
It is flush-mounted and can accommodate indistinctly
sliding rods dia-meter 6mm or 8mm because it is already fitted with a dual threading diameter.
Parts supplied
2 black stainless steel 7P 1/2" flat head c/sunk screws.
Materials
Die-cast zamak body and lever hardened steel springs.
Finishing: Painted in RAL colors
