NYLON BOLT C-AD 120

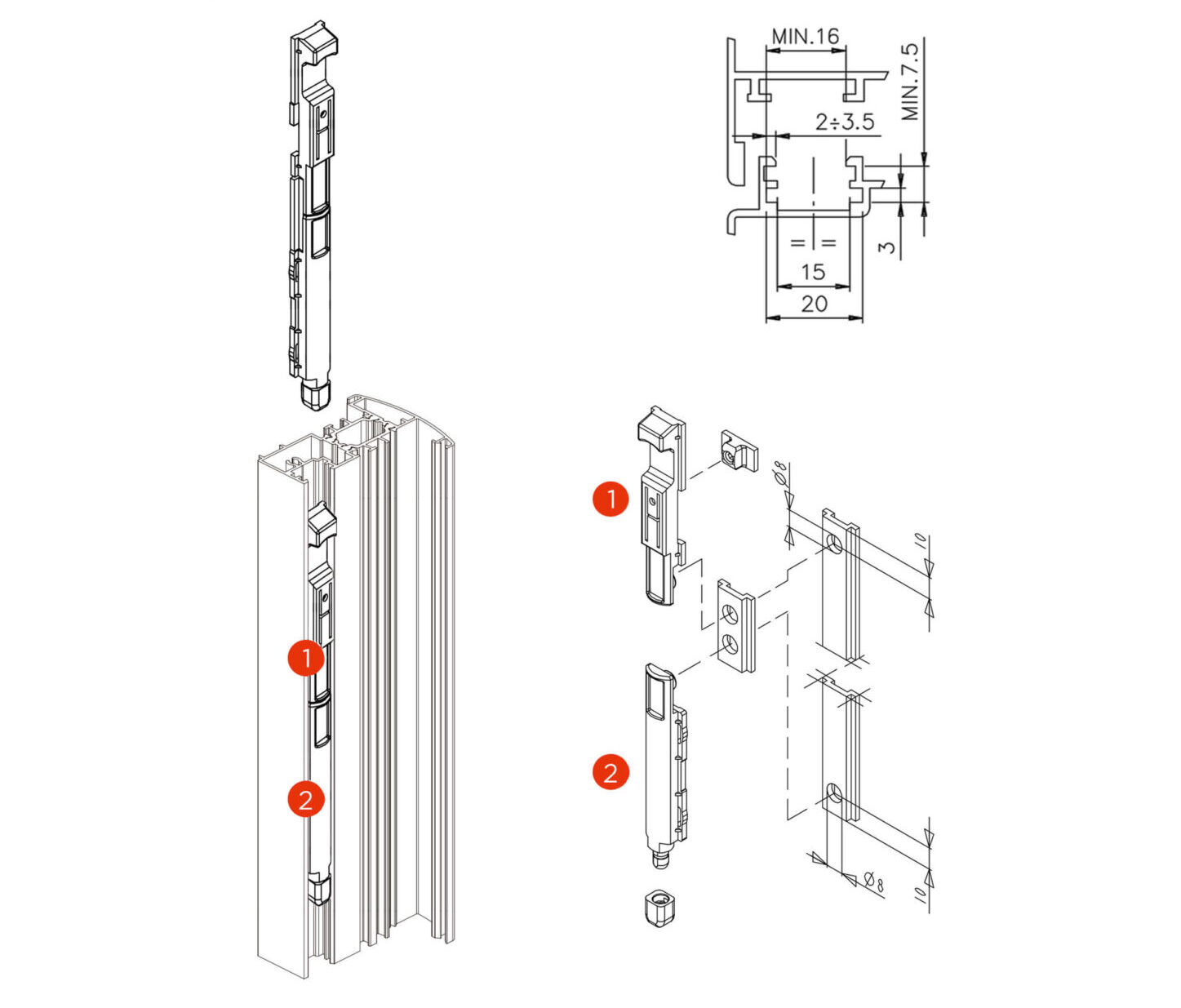

Nylon bolt consisting of a sliding body and a terminal with lock pin for direct fixing to the floor. Designed for use with aluminium open joint door and window frames.
SKU:
C-AD 120
Category: ADLER ALUMINIUM ACC
