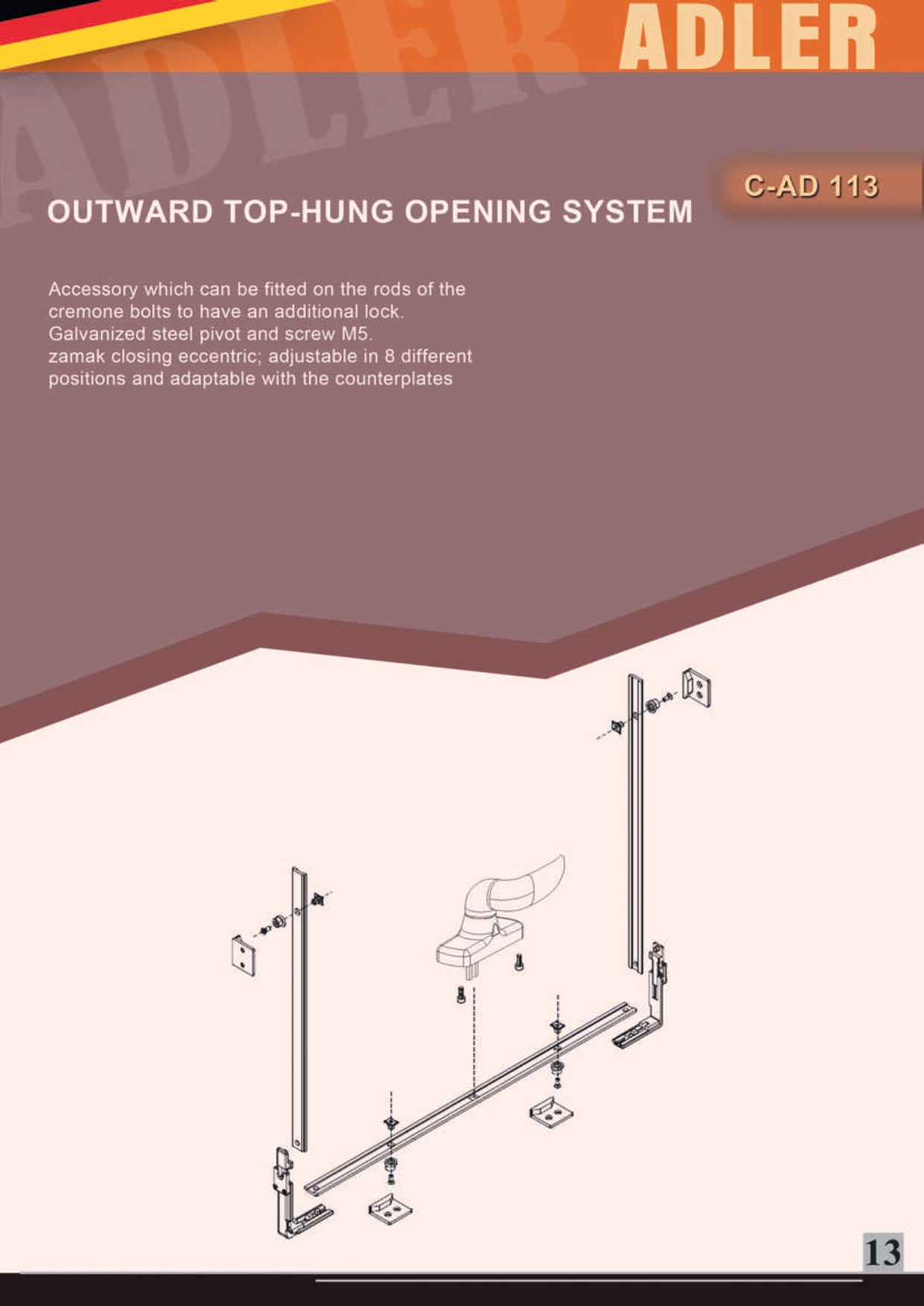

OUTWARD TOP-HUNG OPENING SYSTEM C-AD 113
Accessory which can be fitted on the rods of the cremone bolts to have an additional lock Galvanized steel pivot and screw M5. zamak closing eccentric; adjustable in 8 different positions and adaptable with the counterplates
SKU:
C-AD 113
Category: ADLER ALUMINIUM ACC
