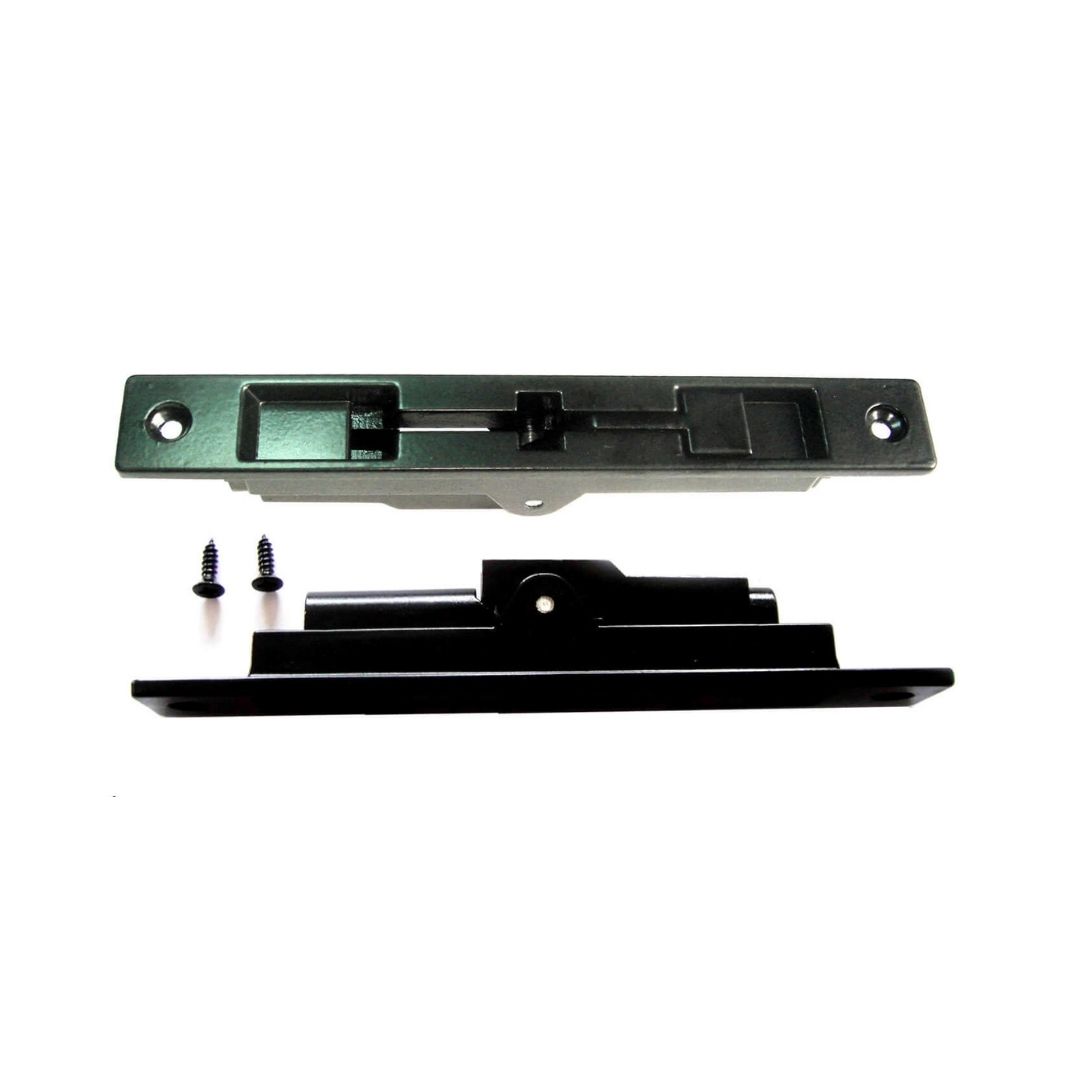

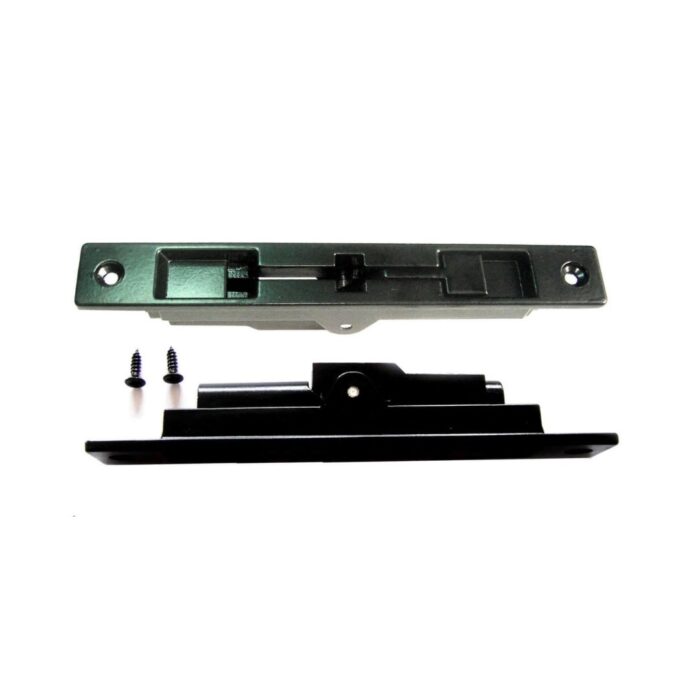

Two Directional Lever Bolt C-AD 119 D
Applications
Two directional lever bolt extremely strong suitable
also on door of new design.
Characteristics
Useful travel 18mm With lever operation it is possible to transmit a force of up 180 kg to the rod.

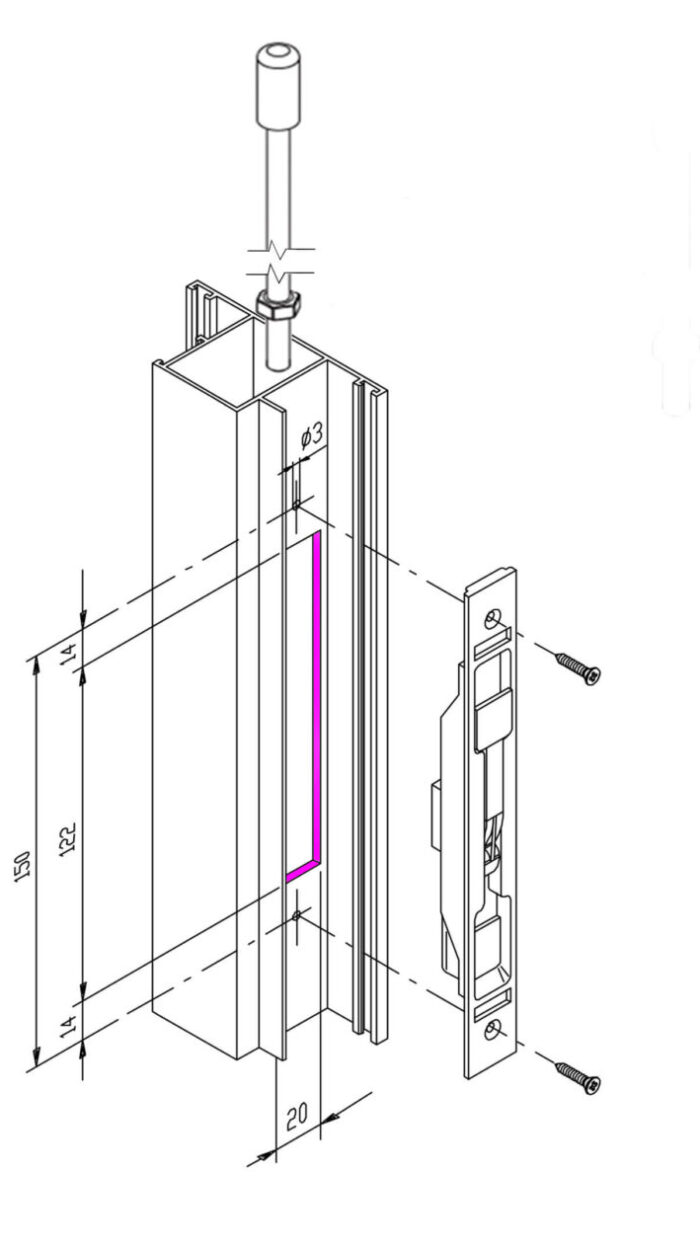

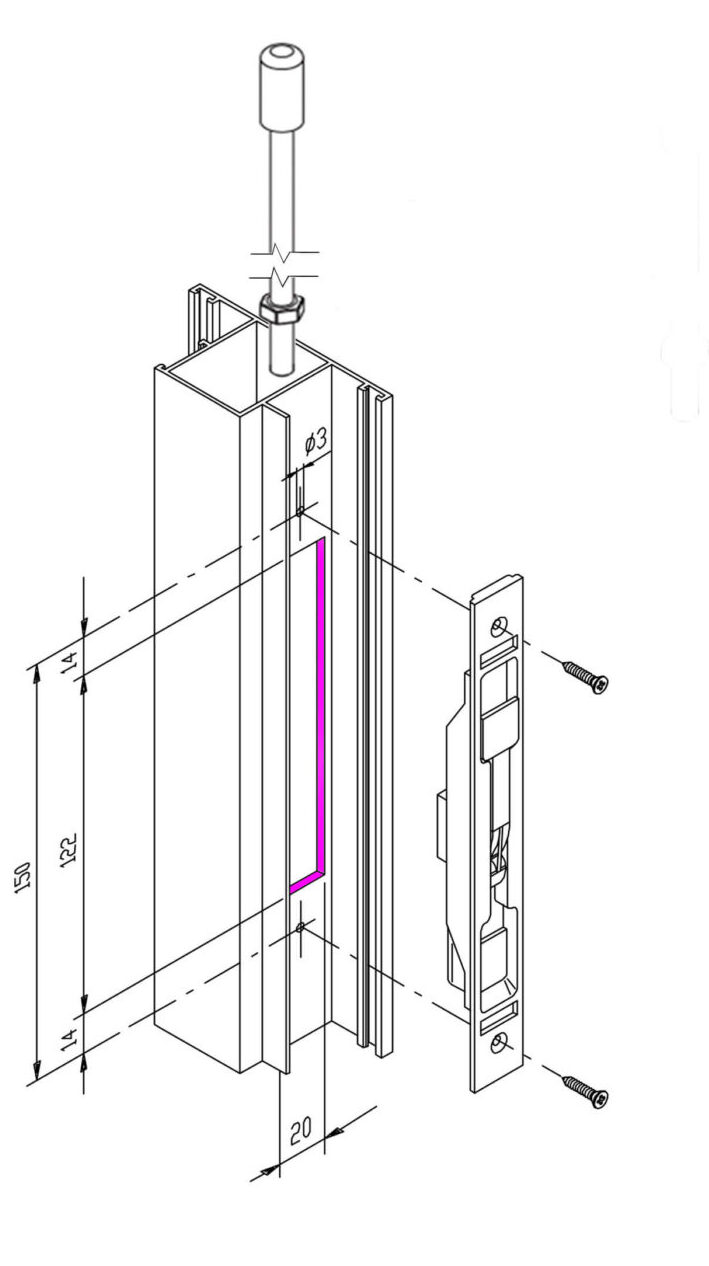

It is flush-mounted and can accommodate indistinctly
sliding rods dia-meter 6mm or 8mm because it is already fitted with a dual threading diameter.
Parts supplied
2 black stainless steel 7P 1/2″ flat head c/sunk screws.
Materials
Die-cast zamak body and lever hardened steel springs.
Finishing: Painted in RAL colors
