Casement Technology

- Casement system that is both cold and thermal break can provide low cost construction but also extremely robust - The system is compatible with “Euro Groove” channel for hardware (4mm gap for hinge arm). - It is a 2 gaskets system - The assembly of the profiles is achieved with light equipment with Monticelli mechanical corner joints that combine easy handling, and quick processing that combines easy handling, and quick processing. - Frame and sash use the same alignment corner for easy connection and improved aesthetic result corner joints. - Allows tilt and turn mechanism - All basic typologies can be made - The glazing bead allows for thick safety glass in order to secure the burglar proof properties of the system and suit its purpose.

CENTRAL HANDLE

¢ IlEasy Plush handle „, Ci«ing central handle for sliding doon and windows, equipped with ufeg b«tton. The handle is made from die-cast aluminium, while se body, confining the mechanism, is fiberglass reinforced nylon. SUP&IED I&RTS 2 self-tapping head screws TSO 4,7x 22 2 self-tapping head screws TfiP 3,9 x 16 I nylon check plate 2 nylon screw-coverstopper

Cremone Bolt

Die-cast aluminum cremone bolt. The Zamak gear slides inside an acetyl resin guide, which also has slots for securing in the opening and closing positions.

CREMONE BOLT

CaH and handle in dia-cast aluminium. Rack, pinion and ever in galvanizad zamak. Derlin guide and fi4ion washer in galvanized steel xrews, Screws fof locking cremone bolts on profile in stainla» steel.

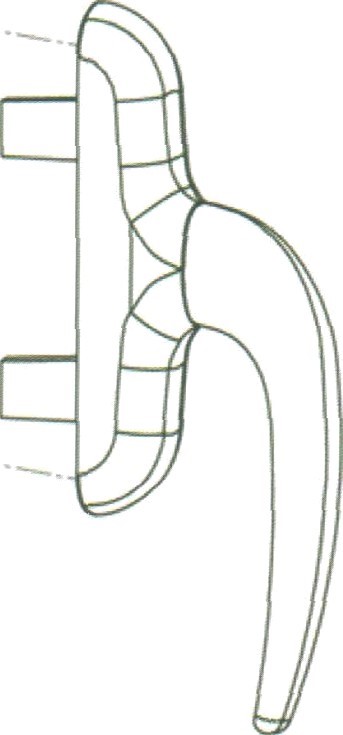

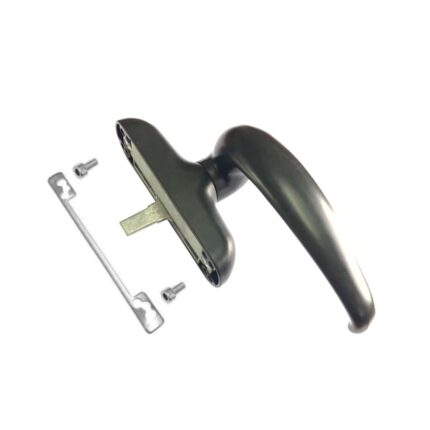

cremone bolt handle C-AD 108

Aluminum die-cast cremone bolt, the zamak gears slide inside an acetyl resin guide, which also has slots for securing in the opening or closing positions. The cremone bolt is universal, can be reversed and has tow-possible center-to-center distances for securing to the profile. Comes with complete kit for the closing one winged window, consisting of tow- rod connection blocks for cremone bolt, tow- rod ends and tow-check plates, made from zamak. Finishing: painted in RAL colors

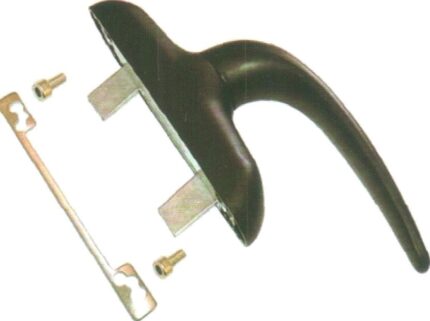

Cremone bolt handle C-AD 109

die-cast aluminum cremone bolt with zamak gears slide inside an acetyl resin guide, which also has slots for securing in the opening and closing positions, the cremone bolt is universal, can be reversed and has two possible center -to- center Finishing: painted in RAL colors

CURTAIN WALL LOCKING ACCESSORIES C-AD 115

Functions Fastening element to be applied directly onto the rods in the range. It permits adjusting the force of the pull by simply turning the eccentric part Technical features Simple and quick to apply by simply making a hole diam. 8mm on the rod. Permits making one or more supplementary fastenings on any frame. Offers the possibility of adjusting the force of the closing pull Materials Zamak base and pawl Stainless steel screws

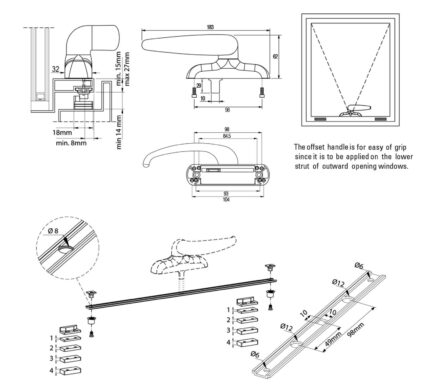

curve curtain wall handle C-AD 112

The employ of Die-cast aluminum handle and zamak case. its differs from the basic casement bolt because, apart from having only one transmission fin, it has an offset handle for ease of grip since it is to be applied on the lower strut of outward opining windows. Finishing: painted in RAL colors

DEMOUNTABLE HANDLE

0emau«table han4le Pull handle used to open strip cremone bolts . The handle is completely made of die - east aluminium, while the plate is made of nylon with 30B mineral fibers

DOOR HANDLE

Double handle for Flexipor doors D0uble handle for aie-cast aluminium doors. The handle has an internal spring-loaded mechanism for returning the handle to the upright, 90’ position. SUPPLIED PARTS 4 self-tapping counteisunk head scre›«sffi0 4,8x16 I finger plate mm 8x8x80

DOOR HANDLE

Double handle for Flexipor doors Die-east aluminium handle. Zamak body, case and rotor. Galvanized steel spring; Delrin low-friction bushing.
