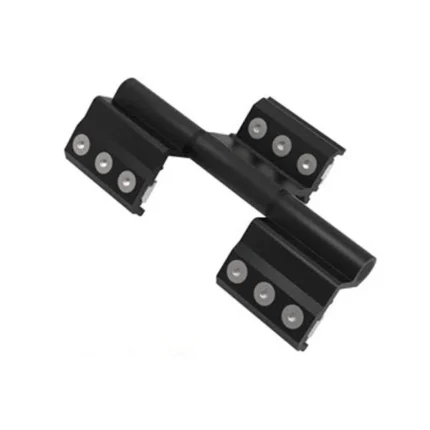

Three wings (Flash base hinge) C-AD 104
TRANSMISSION ANGLE
Additional ve¥ical lock
It allows the application of two additional vertical closing points, one on the cremo- ne bolt side and the other one on the hinge side. Entirely made from black galvanized zamak. It can be applied to all PRlSMAtre base kit.
Adaptabiliy to the systems
> ¢AMERAEUR0PEA(Euro Grooves)

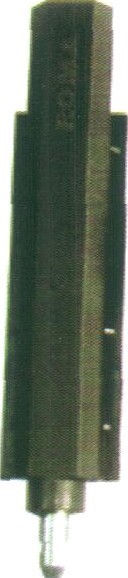

Two Directional Lever Bolt C-AD 119 D
Applications
Two directional lever bolt extremely strong suitable
also on door of new design.
Characteristics
Useful travel 18mm With lever operation it is possible to transmit a force of up 180 kg to the rod.
It is flush-mounted and can accommodate indistinctly
sliding rods dia-meter 6mm or 8mm because it is already fitted with a dual threading diameter.
Parts supplied
2 black stainless steel 7P 1/2" flat head c/sunk screws.
Materials
Die-cast zamak body and lever hardened steel springs.
Finishing: Painted in RAL colors

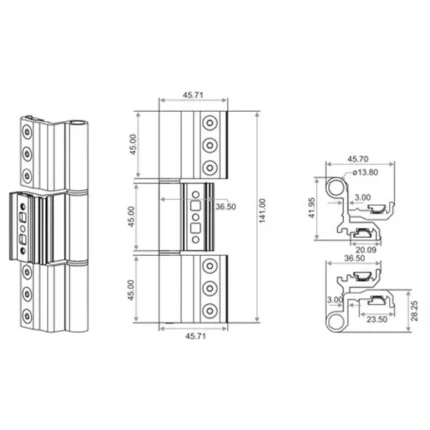

Two wings (Flash base hinge) C-AD 103
Tow-wing hinge made from aluminum, extrusion to fit in euro grove profiles the coun-terplates, screws and pin are stainless steel while the bush is made from self-lubricating nylon it is ready-assembled right or lift and so easy to fit to the wing Capacity of 2 hinges, 80kg
Finishing: painted in RAL colors
Window Closing Kit
WINDOW STAY ARM
