DOOR HINGE

Die-cast aluminum cremone bolt. The Zamak gear slides inside an acetyl resin guide, which also has slots for securing in the opening and closing positions.

Extruded aluminium one-ball bearing fixed roller. Extruded aluminium bearing housing. Tempered steel ball covered with fibre glass nylon. Loading capacity 60 kgs.

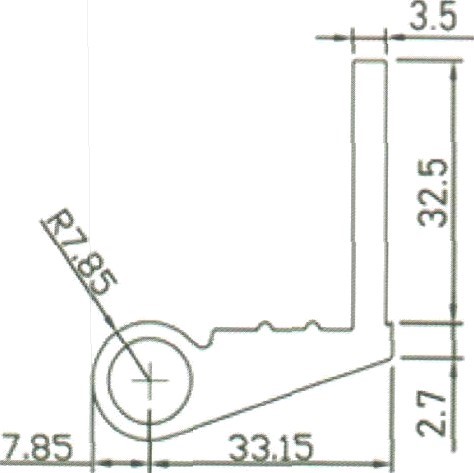

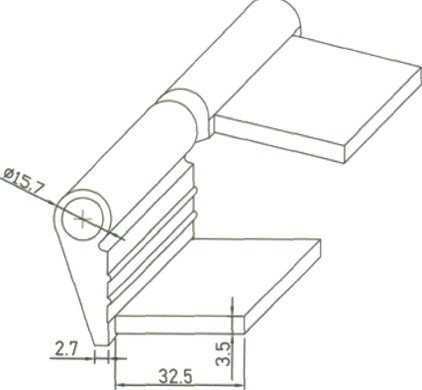

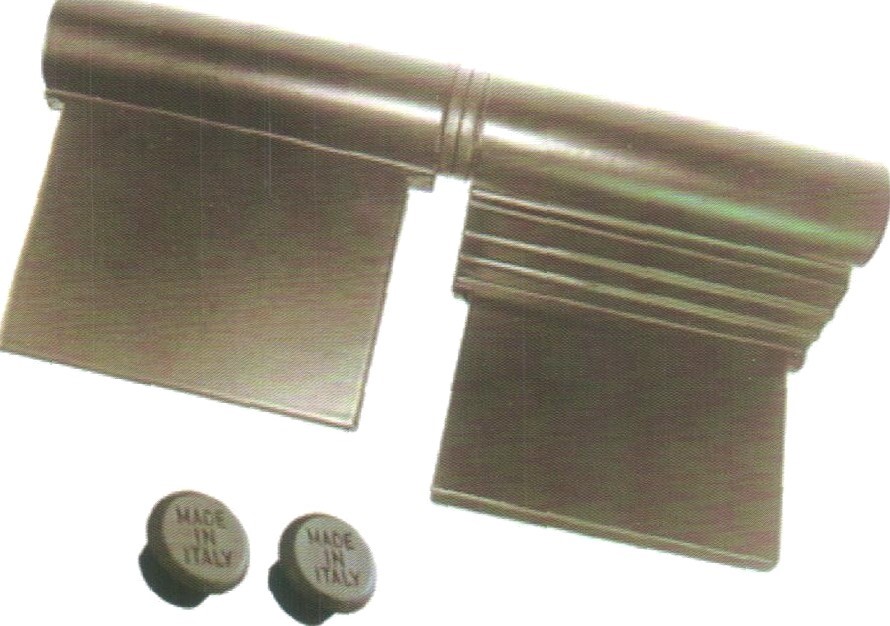

Hinge body and casing are in extruded aluminium. Stainless steel pins and screws. Copper self centerning bushings. Nylon pins case. Nicle plated steel spring,

Additional ve¥ical lock It allows the application of two additional vertical closing points, one on the cremo- ne bolt side and the other one on the hinge side. Entirely made from black galvanized zamak. It can be applied to all PRlSMAtre base kit. Adaptabiliy to the systems > ¢AMERAEUR0PEA(Euro Grooves)
