Profile Hinges C-AD 106

die-cast aluminum cremone bolt with zamak gears slide inside an acetyl resin guide, which also has slots for securing in the opening and closing positions, the cremone bolt is universal, can be reversed and has two possible center -to- center Finishing: painted in RAL colors

Nylon catch has soft and rounded shapes and easy ringing nylon grip. Equipped with of an exclusive fixing system that helps the correct placing of the body and the counter plate. Perfect use on complanate and surmount (+7mm) systems with the 2 counter plates. Additional thicknesses of 1,2,3 mm compatible with both counter plates (usable for surmount systems till 13mm). Nylon body. counter plates and thicknesses; tempered steel helical spring; black galvanized steel fixing screws 03,5 TSPC CR. Nylon ratchet "RING" is universal for the PVC, WOOD, ALUMINIUM AND WOOD-ALUMINIUM profiles. It is also adaptable for the surmount systems (15-28mm).

APPLICATIONS Temporary protection of surfaces, during medium and severe mechanical transformations of the following materials: Brushed aluminium, ground or deep drawing stainless steel, matt painted coils and PVC profiles/plates. Not suggested for Copper, brass and copper containing alloys. Not suitable for protection against corrosion, humidity or chemical solvents. SUITABLITY suitable for POWDER COATED ALUMINIUM PROFILES ADLER N-2R exhibits the special "EASY-PEEL" characteristics for the rapid removal of the film from high gloss to semi matt surface, such as glossy painted metals. The removal Forces is inversely proportional to the speed of removal OUTLINES UNIT Film type polyethylene (LDPE) UV Treated 80 MIC Black / White, Black / Black Average Thickness (A.S.T.M) Colour

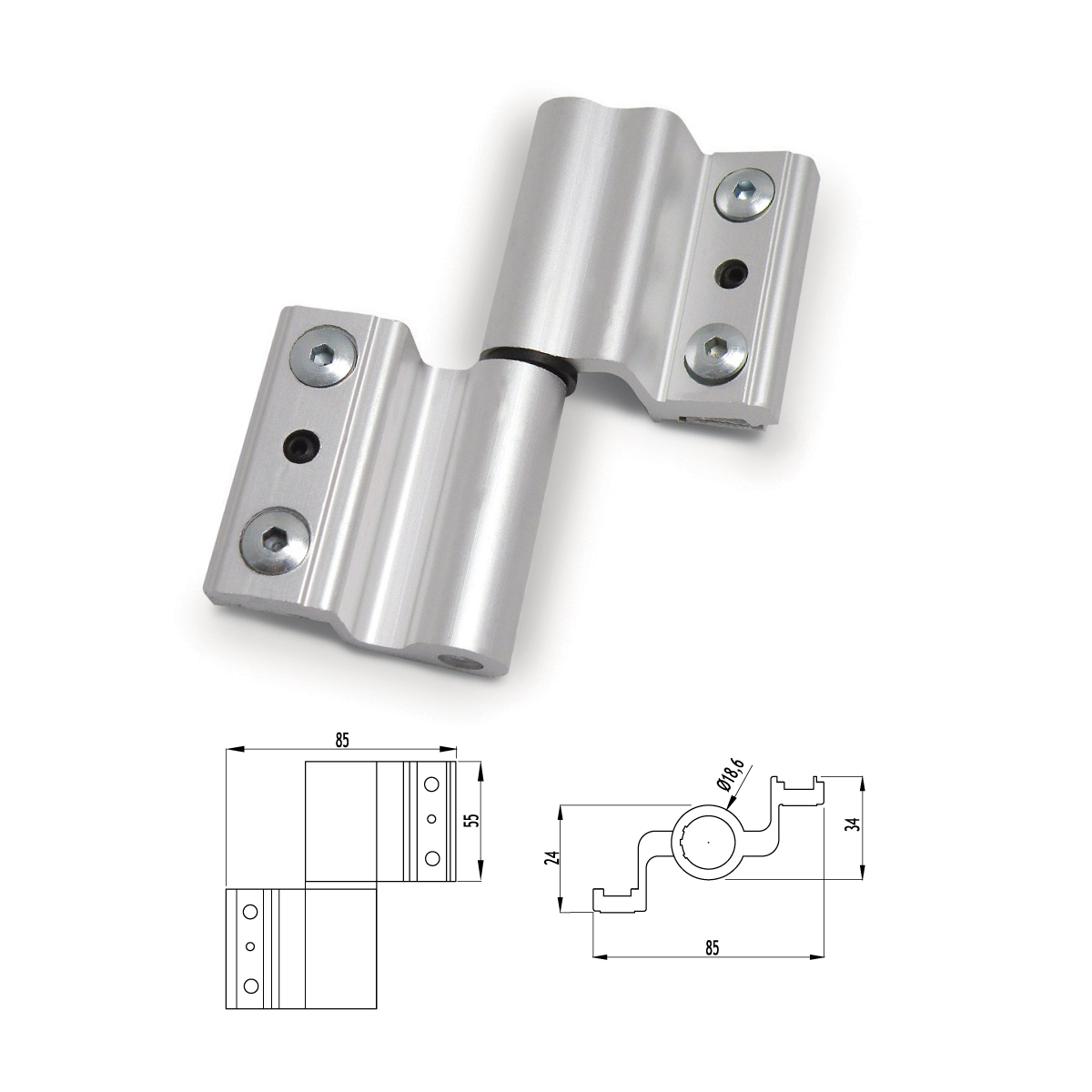

Tow-wing hinge made from aluminum, extrusion to fit in euro grove profiles the coun-terplates, screws and pin are stainless steel while the bush is made from self-lubricating nylon it is ready-assembled right or lift and so easy to fit to the wing Capacity of 2 hinges, 80kg Finishing: painted in RAL colors
