SMART ARCHITECTURAL SYSTEMS

Smart Architectural Systems façade systems are designed with a 50 mm wide mullion and transom that is easily fabricated and assembled.

FAÇADE SYSTEMS

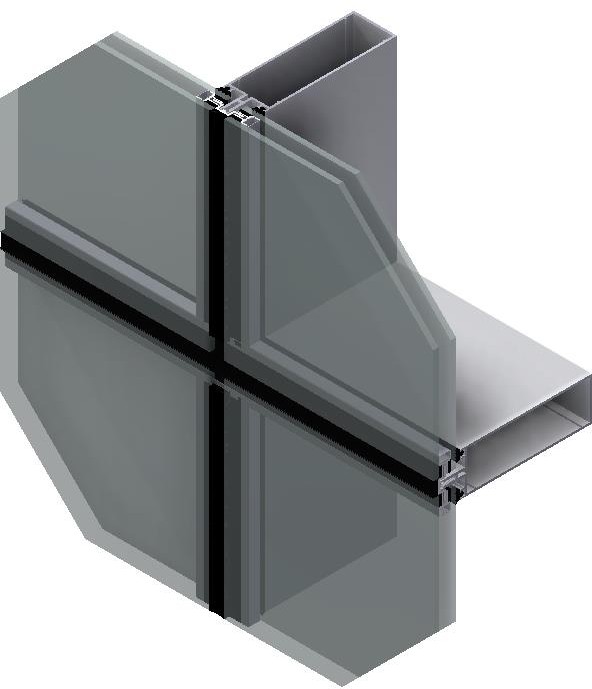

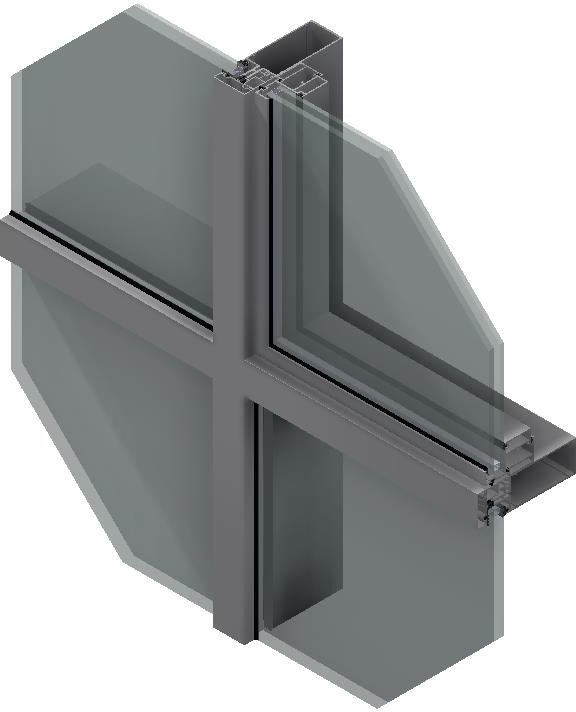

CW- 50 SERIES

  • The CW-50 Series is a non-thermal Curtain Wall system
  • Mullion/ Transom Width: 50mm
  • Mullion / Transom Depth Range: 55mm – 195mm
  • Mullion/ Transom Profile Thickness: 2mm – 3mm
  • Allowable Glazing Width: 6mm & 24mm
  • Tested in Accordance with ASTM Standards :

                   o ASTM E283
                   o ASTM E330
                   o ASTM E331

  • Compatible with Euro groove accessories
  • Fitted with EPDM gaskets to fully secure the glazing both internally and externally

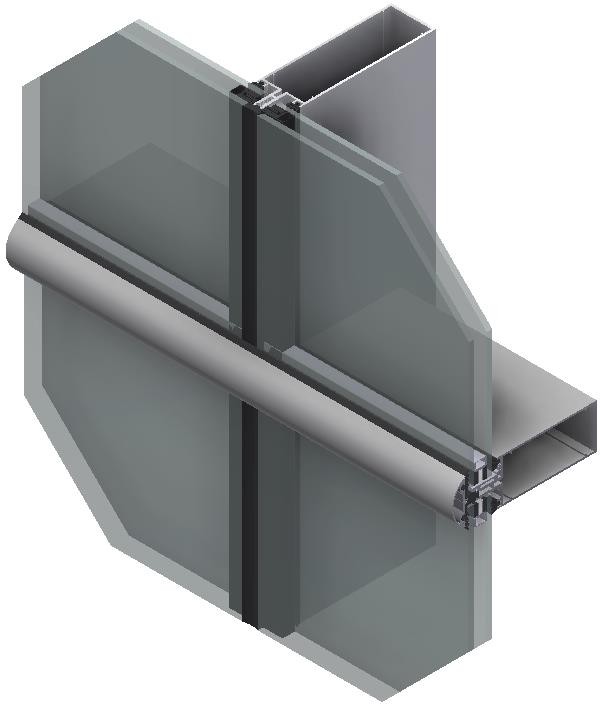

SSG-50 and SG-50 Series

  • The SSG-50 and SG-50 Series are non-thermal Semi Structural and Structural Glazing
    systems respectively
  • Mullion/ Transom Width: 50mm
  • Mullion / Transom Depth Range: 55mm – 195mm
  • Mullion/ Transom Profile Thickness: 2mm – 3mm
  • Allowable Glazing Width: 6mm & 26mm
  • Tested in Accordance with ASTM Standards :

                   o ASTM E283
                   o ASTM E330
                   o ASTM E331

  • Compatible with Euro groove accessories
  • Fitted with EPDM gaskets to fully secure glazing internally
