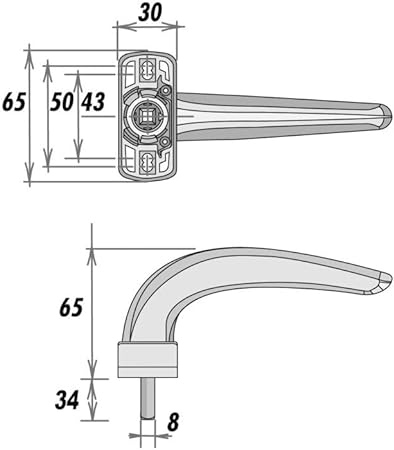

Hinge door handle C-AD 101

It allows the application of two additional vertical closing points, one on the cremone bolt side and the other one on the hinge side. Materials made from black galvanized Zamak. コ

The heavy duty hinge is the most efficacious solution for the realisation of doors/frames of considerable dimension and weight. It can be entirely mounted on the pre-assembles frame, thanks to the fast adjustments in the three directions, made without the disassembling of the carters and the removing of the window leaf. This operation can be effected also by one person and is facilitated by the presence of immediately visible incisions. Hinges are available for different interaxes: 60-79 The base body of the hinge is made of extruded aluminium, cover-plate in die-casting aluminium, pivots in stainless steel, self-placing bushes and screws in galvanised steel, ferrules and plugs in nylon, fixing counterplates in extruded aluminium and the spring in galvanised steel. Load capacity of 2 wings-150kg. Finishing: painted in RAL colors

APPLICATIONS Temporary protection of surfaces, during medium and severe mechanical transformations of the following materials: Brushed aluminium, ground or deep drawing stainless steel, matt painted coils and PVC profiles/plates. Not suggested for Copper, brass and copper containing alloys. Not suitable for protection against corrosion, humidity or chemical solvents. SUITABLITY suitable for POWDER COATED ALUMINIUM PROFILES ADLER N-2R exhibits the special "EASY-PEEL" characteristics for the rapid removal of the film from high gloss to semi matt surface, such as glossy painted metals. The removal Forces is inversely proportional to the speed of removal OUTLINES UNIT Film type polyethylene (LDPE) UV Treated 80 MIC Black / White, Black / Black Average Thickness (A.S.T.M) Colour

T connector support for joining extruded aluminium profile sections. Quick to install and very secure
