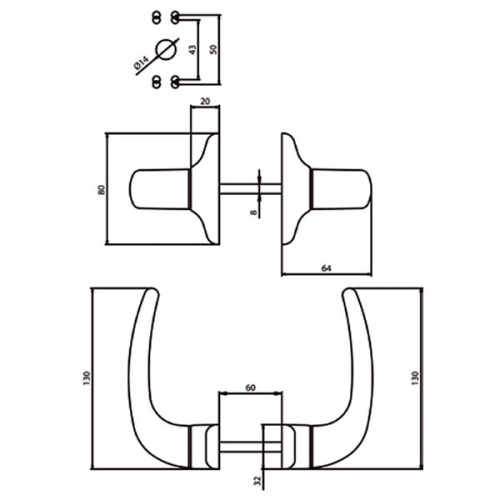

Hinge door handle C-AD 102

Accessory which can be fitted on the corner of a shutter to link the spring rounded glazing bead. In die-cast aluminium

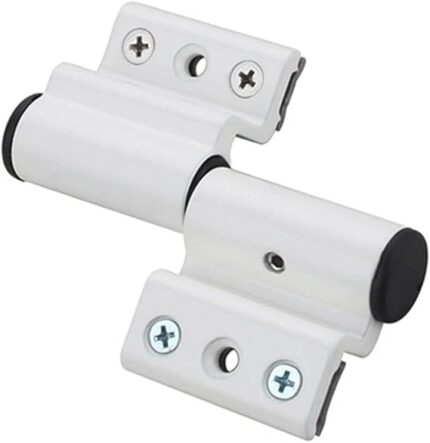

The heavy duty hinge is the most efficacious solution for the realisation of doors/frames of considerable dimension and weight. It can be entirely mounted on the pre-assembles frame, thanks to the fast adjustments in the three directions, made without the disassembling of the carters and the removing of the window leaf. This operation can be effected also by one person and is facilitated by the presence of immediately visible incisions. Hinges are available for different interaxes: 60-79 The base body of the hinge is made of extruded aluminium, cover-plate in die-casting aluminium, pivots in stainless steel, self-placing bushes and screws in galvanised steel, ferrules and plugs in nylon, fixing counterplates in extruded aluminium and the spring in galvanised steel. Load capacity of 2 wings-150kg. Finishing: painted in RAL colors

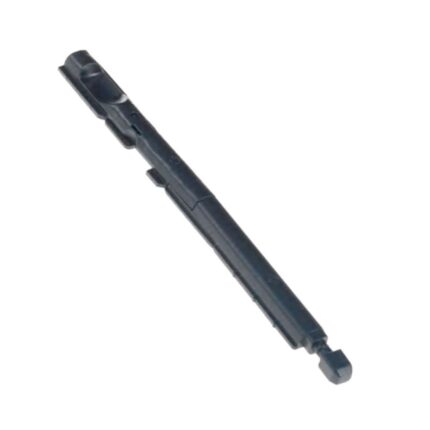

Nylon bolt consisting of a sliding body and a terminal with lock pin for direct fixing to the floor. Designed for use with aluminium open joint door and window frames.

Applications Two directional lever bolt extremely strong suitable also on door of new design. Characteristics Useful travel 18mm With lever operation it is possible to transmit a force of up 180 kg to the rod. It is flush-mounted and can accommodate indistinctly sliding rods dia-meter 6mm or 8mm because it is already fitted with a dual threading diameter. Parts supplied 2 black stainless steel 7P 1/2" flat head c/sunk screws. Materials Die-cast zamak body and lever hardened steel springs. Finishing: Painted in RAL colors
